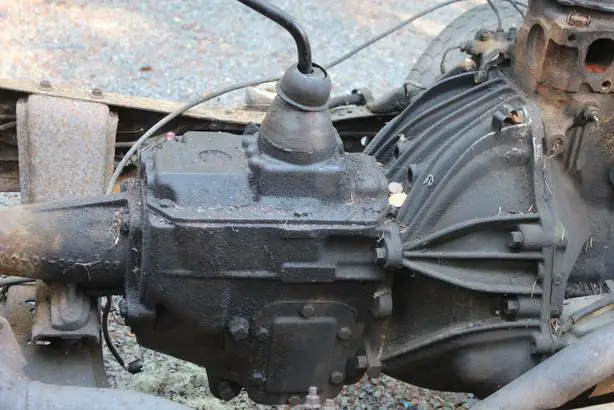

The Complete Guide to the T18 Transmission in Bullnose Ford Trucks
When you’re talking classic Ford trucks, particularly the Bullnose models from 1980-1986, one name that keeps popping up in conversations about durability and raw, mechanical grit is the Borg-Warner T18 transmission. This beast of a gearbox is as tough as nails. It has become a staple in the world of classic Ford enthusiasts. Whether you’re restoring a vintage F-150 or using a Bullnose for rugged off-road adventures, understanding the ins and outs of the T18 is crucial. So, let’s dive deep into the gears, ratios, history, and everything else you need to know about the T18 transmission.
The Basics: Number of Gears and Synchronization
The T18 is a 4-speed manual transmission. What makes it stand out is the configuration of its gears, especially that first gear, which is often referred to as a “granny” gear due to its very low ratio. Engineers designed this transmission with heavy-duty use in mind, so they spread the gear ratios out to handle various tasks, from pulling heavy loads to managing off-road conditions.
The T18 features:
- First Gear: 6.32:1 or 4.02:1 (depending on the specific model)
- Second Gear: 3.09:1 or 2.41:1
- Third Gear: 1.69:1 or 1.41:1
- Fourth Gear: 1.00:1 (Direct Drive)
- Reverse Gear: 7.44:1
It’s important to note that not all gears in the T18 are synchronized. In fact, the first gear is non-synchronized, which means you need to come to a complete stop before engaging it without grinding. The second through fourth gears, however, are synchronized, making them smoother to shift between when driving. This setup is ideal for those situations where you need to start moving a heavy load and then gradually pick up speed.
Gear Ratios: Breaking Down the Numbers
As mentioned earlier, Borg-Warner produced the T18 with two different sets of gear ratios. The more common set found in Ford trucks is the 6.32:1 first gear version. This low first gear is perfect for heavy towing and off-road conditions where you need to apply power slowly and steadily. The alternative set, with a 4.02:1 first gear, is less common. It does offer a more balanced range for general driving with slightly less low-end torque though.
The other gears offer a good range for the various speeds you’ll encounter in everyday driving. The direct drive fourth gear (1.00:1) ensures that you can cruise comfortably at highway speeds without the engine working too hard.
Cooling System
One of the features of manual transmissions like the T18 is their simplicity—there’s no complex cooling system involved. The T18 relies on ambient air cooling combined with the heat dissipation provided by the transmission case itself. In heavy-duty or off-road applications, ensuring good airflow around the transmission is crucial to prevent overheating, but under normal conditions, the T18 doesn’t require an external cooling system like some automatic transmissions do.
Maximum Torque Capacity
When we talk about torque capacity, the T18 is a true workhorse. It’s rated to handle up to 300 lb-ft of torque. That’s more than enough for most applications in Bullnose Ford trucks. This capacity makes it a favorite among those who need a reliable transmission for towing, hauling, or even just ensuring that their truck can handle whatever is thrown at it.
Transmission Fluid and Lubrication
Regular maintenance is key to keeping the T18 running smoothly. For lubrication, the T18 originally used 80W-90 gear oil, which is still recommended today. However, some owners have switched to synthetic oils for better performance, particularly in cold climates, where the standard gear oil can become thick and sluggish. When changing the fluid, make sure the transmission is at operating temperature to ensure a full drain of the old oil and the best possible performance from the new lubricant.
Driving Dynamics and Typical Usage
Driving a truck equipped with a T18 transmission is a unique experience, especially with that low first gear. When you’re starting off in first, the low ratio gives you immense control. This makes it ideal for pulling heavy loads, navigating off-road terrain, or just moving at a crawl when precision is required. However, many drivers skip first gear altogether during regular driving. They prefer to start in second, as the non-synchronized first gear can be cumbersome in everyday situations.
The spread of the gear ratios allows for smooth acceleration once you’re moving. The direct drive fourth gear means that highway cruising is comfortable, even with the lower revving nature of the engines typically paired with the T18.
In terms of usage, the T18 is ideal for:
- Towing and Hauling: The low first gear makes pulling heavy loads a breeze.
- Off-Roading: That same low first gear, combined with the transmission’s durability, makes it perfect for rugged terrain.
- Restoration Projects: For those looking to keep their Bullnose as original as possible, the T18 is often the preferred choice.
Servicing and Rebuilding the T18
If you’re considering rebuilding a T18, you’re in for a task that’s both challenging and rewarding. The good news is that the T18 is relatively straightforward as manual transmissions go, but it does require attention to detail and some specialized tools.
Difficulty Level: Medium to High. The main challenges come from handling heavy components and ensuring that everything is aligned correctly during reassembly. Synchro rings, bearings, and seals are commonly replaced during a rebuild, but worn gears or damaged shafts can make the job more difficult and expensive.
Estimated Cost: A full rebuild kit for a T18 can cost anywhere from $250 to $500, depending on the quality of the parts. If gears or major components need replacing, the cost can easily exceed $1,000. Professional rebuilds typically cost between $1,200 and $1,800, depending on the extent of the work needed.
Ease of Service: Routine servicing like fluid changes and inspections are relatively easy, thanks to the T18’s robust design. However, accessing the transmission can be labor-intensive depending on your truck’s configuration.
Durability and Reliability
One of the reasons the T18 has earned such a solid reputation is its durability. Built with heavy-duty materials, including cast iron for the case, the T18 is designed to last. The gears themselves are tough and can handle a lot of abuse, which is why these transmissions are still sought after today.
Longevity: With regular maintenance, it’s not uncommon for a T18 to last well over 200,000 miles. The primary factors that contribute to longevity are regular fluid changes and avoiding overloading the transmission beyond its torque capacity.
Common Issues: While the T18 is generally reliable, it’s not without its weaknesses. The most common issues include:
- Synchro Wear: Over time, the synchros can wear out, leading to grinding during shifts.
- Bearing Failure: Like any transmission, bearings can wear out, particularly if the fluid level is low or the oil isn’t changed regularly.
- First Gear Engagement: Because first gear isn’t synchronized, drivers unfamiliar with the T18 can damage the gear by attempting to shift into it while moving.
History and Production
Borg-Warner originally produced the T18 transmission. Later, they sold the Borg-Warner division and Tremec took over production. The T18 was introduced in the late 1960s and saw production into the 1980s. Its use spanned a variety of Ford trucks, Jeeps, and even International Harvester vehicles.
For Bullnose Ford trucks, the T18 was primarily used in:
- Ford F-150 (1980-1986)
- Ford F-250 (1980-1986)
- Ford F-350 (1980-1986)
It’s worth noting that the T18 was often found in trucks that were intended for heavy-duty use. This speaks to its capabilities and Ford’s confidence in the transmission’s strength.
Aftermarket Support and Modifications
Given its popularity and long production run, the T18 enjoys robust aftermarket support. Rebuild kits, replacement gears, and even upgraded components are readily available. Some owners opt to swap out the original gear sets for those with different ratios, depending on their specific needs.
Modifications: While the T18 is tough as nails right out of the box, some modifications can enhance its performance:
- Upgraded Synchronizers: For smoother shifting, particularly if the truck is used in a mix of off-road and on-road conditions.
- Gear Ratio Swaps: Depending on your driving needs, swapping to a different first gear ratio can change the transmission’s behavior significantly.
- Heavy-Duty Bearings: For those pushing the transmission to its limits, upgraded bearings can offer additional peace of mind.
Aftermarket Support: Companies like Novak, Advance Adapters, and even Ford’s own vintage parts suppliers offer a wide range of parts and kits for the T18. This can make it easier to keep these old workhorses on the road.
Conclusion: The Legacy of the T18 in Bullnose Ford Trucks
The T18 transmission is more than just a piece of machinery. It’s a symbol of the rugged, no-nonsense approach that defines the Bullnose Ford trucks. Whether you’re crawling over rocks, hauling a load, or just enjoying the feel of a classic truck, the T18 delivers reliable performance. Additionally, there’s a connection to the vehicle that modern transmissions often lack.
Its durability, straightforward design, and the wealth of knowledge available about it make the T18 a favorite among enthusiasts and mechanics alike. Sure, it has its quirks—like the non-synchronized first gear—but those are part of what makes driving with a T18 a unique experience.
So, whether you’re rebuilding your T18, swapping one into a project truck, or just want to know more about what makes these transmissions tick, you’re part of a community that values strength, simplicity, and a good story. And trust me, the T18 has plenty of stories to tell.
