The Ford C4 Transmission: A Comprehensive Guide

Introduction

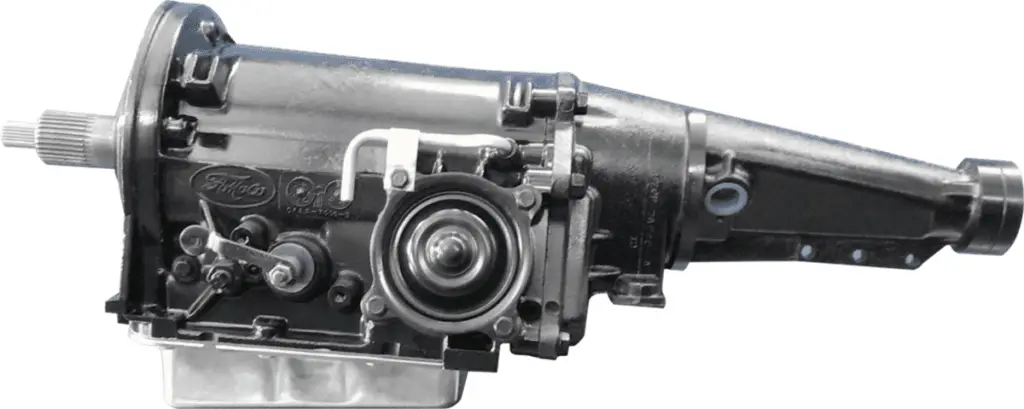

Ford C4 Transmission

The Ford C4 transmission is a lightweight and reliable automatic gearbox that became a cornerstone of Ford’s lineup from the 1960s through the early 1980s. Known for its simplicity and durability, the C4 earned a reputation as one of the best automatic transmissions for a wide range of vehicles, from compact cars to muscle cars. Its ability to handle moderate power, combined with its relatively low weight, made it a popular choice among car enthusiasts and restorers. This guide explores the C4 transmission’s history, specifications, compatibility, common issues, and offers tips for maintenance and upgrades.

History and Development

Introduction of the Transmission
Ford introduced the C4 transmission in 1964 as a new lightweight automatic gearbox designed for small to mid-sized vehicles. It marked a significant step forward in automatic transmission design, offering a fully aluminum case that reduced weight without compromising strength. The C4 quickly became a preferred choice for many Ford models, thanks to its reliability and ease of maintenance.

Design Purpose
The C4 was engineered to provide smooth shifting and dependable performance in a variety of vehicles. Ford aimed to create a transmission that could handle the demands of everyday driving while being simple to service. Its three-speed automatic configuration was designed to offer a balance between fuel efficiency and performance, making it suitable for both daily drivers and performance-oriented vehicles.

Production and Usage
Ford produced the C4 transmission from 1964 to 1981, during which it was used in a wide range of vehicles, including the Mustang, Falcon, and early Broncos. Its versatility and reliability ensured that it remained a staple in Ford’s lineup for nearly two decades. Even after production ended, the C4 continued to be a popular choice for custom builds and restorations, particularly in the classic car community.

Popularity
The Ford C4 transmission gained widespread popularity due to its durability and ease of maintenance. Enthusiasts appreciated its lightweight design, which contributed to improved vehicle performance and fuel efficiency. Over time, the C4 has become a go-to transmission for those restoring classic Ford vehicles, as well as for those looking to build reliable, high-performance street machines.

Transmission Specifications

Number of Gears
The Ford C4 is a 3-speed automatic transmission. This straightforward three-speed layout provides a good balance between performance and fuel efficiency, making it suitable for a variety of driving conditions. While modern transmissions may offer more gears, the C4’s simplicity and reliability continue to make it a popular choice for classic vehicles.

Gear Ratios
The C4 transmission features specific gear ratios that contribute to its versatility and performance. These gear ratios are:

  • 1st Gear: 2.46:1
  • 2nd Gear: 1.46:1
  • 3rd Gear: 1.00:1
  • Reverse: 2.18:1

These ratios provide strong acceleration in lower gears while allowing for efficient cruising in 3rd gear. The C4’s gear ratios are well-suited for a range of driving scenarios, from city streets to highways.

Case Material
The Ford C4 transmission features an aluminum case, which was a significant advancement at the time of its introduction. This aluminum construction reduces the overall weight of the transmission, contributing to better vehicle performance and improved fuel efficiency. Despite its lightweight design, the C4 remains robust enough to handle the demands of everyday driving and light to moderate performance applications.

Weight and Dimensions
The C4 transmission is relatively lightweight, with a weight of around 110 pounds without fluid. Its compact dimensions make it an easy fit in a variety of vehicles, especially smaller cars and classic muscle cars. Typical dimensions for the C4 are:

  • Length: Approximately 30.5 inches
  • Width: Around 18 inches
  • Height: 13 inches

These dimensions and its light weight make the C4 an ideal choice for vehicles where space and weight are considerations.

Engine Compatibility
The Ford C4 was designed to be compatible with a wide range of small to mid-sized Ford engines. Common engine pairings include:

  • Ford 289 (4.7L) and 302 (5.0L) V8s: These engines are a natural match for the C4, providing a balance of power and efficiency.
  • Ford 200 (3.3L) and 250 (4.1L) Inline-Sixes: These smaller engines benefit from the C4’s lightweight design, making it an ideal transmission for compact and mid-sized vehicles.
  • Ford 351 (5.8L) Windsor V8: Although the C4 can handle moderate power, enthusiasts often pair it with the 351 Windsor for lighter vehicles to enhance performance without adding excessive weight.

This broad engine compatibility makes the C4 a versatile transmission choice across various Ford vehicles.

Recommended Fluid Type and Capacity
The C4 transmission requires high-quality automatic transmission fluid (ATF), with Type F being the preferred choice for most applications. Using the correct fluid ensures smooth operation and helps extend the transmission’s life.

  • Fluid Capacity: The C4 holds approximately 9 quarts of ATF for a complete fill, depending on the specific vehicle and cooling system.
  • Service Interval: Regular fluid changes are recommended every 30,000 miles under normal driving conditions. For vehicles used in more demanding situations, such as towing or performance driving, more frequent changes (every 15,000 to 20,000 miles) are advisable to maintain optimal performance.

Transmission Compatibility: Torque Converters and Transfer Cases

Torque Converter Compatibility

  • Torque Converter Types: The C4 transmission pairs with a variety of torque converters, allowing for customization based on the vehicle’s use. Standard converters typically offer a balance between efficiency and performance, while higher-stall converters can improve acceleration in performance vehicles. Selecting the right torque converter is crucial for maximizing the C4’s performance.
  • Lock-Up vs. Non-Lock-Up Converters: The C4 typically uses non-lock-up converters, which are ideal for smooth power delivery in daily driving and light performance applications. However, for those seeking better fuel efficiency at highway speeds, aftermarket lock-up converters are available.

Transfer Case Compatibility

  • 4WD Integration: The C4 transmission is compatible with several transfer cases, making it a viable option for 4WD vehicles, such as early Broncos. Common transfer cases like the Dana 20 can bolt directly to the C4, simplifying the installation process.
  • Direct Bolt-On Transfer Cases: When paired with a compatible transfer case, the C4 offers a straightforward setup for 4WD conversions or restorations. This direct compatibility ensures proper alignment and function, making it easier to maintain or upgrade a 4WD vehicle.
  • Performance and Durability: In 4WD applications, the C4 provides reliable performance, especially in light off-road conditions. While it may not handle extreme off-roading as well as heavier-duty transmissions, its lightweight design and strong build make it a solid choice for moderate off-road adventures.

Cooling System

Standard Cooling
The C4 transmission relies on an external cooler, typically integrated with the vehicle’s radiator, for heat dissipation. This cooling setup is generally sufficient for most driving conditions. The cooler helps maintain safe operating temperatures, which is essential for preserving the transmission’s longevity.

Additional Cooling Options
For vehicles used in more demanding conditions, such as towing or high-performance driving, additional cooling may be necessary. Installing a dedicated external transmission cooler can help manage heat more effectively. By reducing the risk of overheating, an external cooler extends the life of the transmission fluid and internal components. Although the standard cooling system is adequate for typical use, a supplementary cooler provides extra protection in more challenging conditions.

Maximum Torque and Durability

Torque Capacity

  • Stated Torque Rating: The Ford C4 transmission can handle up to approximately 300 lb-ft of torque in stock form. This makes it suitable for small to mid-sized engines, providing reliable performance without the risk of overloading.
  • Impact of Overloading: Exceeding the C4’s torque rating, especially in modified vehicles, can lead to premature wear or failure. It’s crucial to match the transmission to the engine’s output, particularly in performance builds or heavy-duty applications.

Durability

  • General Reliability: The Ford C4 is known for its durability, especially in stock configurations. Its simple design and robust components allow it to withstand the demands of daily driving and light performance use. With regular maintenance, the C4 can easily provide many years of reliable service.
  • Service Life Expectations: Under normal driving conditions, the C4 transmission typically requires minimal maintenance beyond regular fluid changes. However, heavy-duty or performance applications may necessitate more frequent inspections and service to ensure continued reliability.

Common Issues

  • Transmission-Specific Issues: While the C4 is generally reliable, a few common issues may arise over time:
    • Modulator Valve Leaks: The vacuum modulator valve can develop leaks, leading to delayed or harsh shifts. This issue is relatively common and often easy to fix.
    • Front Pump Seal Leaks: The front pump seal may wear out, causing fluid leaks. Replacing the seal usually resolves the problem.
    • Slipping Gears: Over time, worn clutches or bands can cause the transmission to slip, particularly in higher gears. This issue typically requires a rebuild to restore full function.
  • Causes and Solutions:
    • Modulator Valve Leaks: Replacing the vacuum modulator valve and inspecting the vacuum lines can prevent leaks and restore proper shifting.
    • Front Pump Seal Leaks: Replacing the front pump seal and ensuring the transmission is properly installed can prevent further leaks.
    • Slipping Gears: Regular fluid changes and avoiding excessive heat buildup can help prevent slipping. If slipping occurs, a rebuild is often necessary to replace worn components.

Driving Dynamics and Typical Usage

Shifting Characteristics

  • Shift Feel: The Ford C4 transmission is known for its smooth and consistent shift feel. While not as firm as some performance-oriented transmissions, it provides reliable and predictable shifts, making it ideal for daily driving and light performance use.
  • Shift Timing: The C4 offers relatively quick shifts, particularly in lower gears. Proper maintenance ensures that shifts remain smooth and timely, contributing to an enjoyable driving experience. Adjustments to the modulator valve can fine-tune shift timing to suit different driving preferences.

Typical Usage

  • Daily Driving: The C4 excels in daily driving scenarios, providing smooth and efficient operation. Its 3-speed configuration is well-suited for city and suburban driving, offering good acceleration and fuel efficiency.
  • Towing: While the C4 can handle light towing, it is not designed for heavy-duty applications. The transmission’s moderate torque capacity limits its effectiveness in towing heavy loads over long distances.
  • Off-Roading: In 4WD applications, the C4 performs adequately in light off-road conditions. Its lightweight design and smooth shifts make it suitable for moderate off-road adventures, though more extreme conditions may push its limits.

Serviceability and Rebuild Costs

Ease of Service
The Ford C4 transmission is relatively easy to service, particularly for those familiar with automatic transmissions. Routine maintenance tasks, such as fluid changes and filter replacements, are straightforward and can be performed with basic tools. More complex repairs, like replacing seals or adjusting the modulator valve, may require more expertise but are still manageable for experienced mechanics.

Rebuild Costs
The cost to rebuild a Ford C4 transmission varies depending on the extent of wear and the specific components that need replacement. On average, a professional rebuild can range from $800 to $1,200, including parts and labor. DIY rebuild kits are available for around $300 to $500, though rebuilding a transmission requires a solid understanding of its internal workings.

Aftermarket Support and Modifications

Available Upgrades
The Ford C4 is robust in its stock form, but several aftermarket options are available to enhance its performance or longevity:

  • High-Stall Torque Converters: Upgrading to a high-stall torque converter can improve acceleration in performance vehicles, particularly those used in drag racing.
  • Shift Kits: Installing a shift kit can enhance the firmness and speed of shifts, making the transmission more responsive under load.
  • Additional Cooling Systems: Adding an external transmission cooler can help manage heat in demanding situations, extending the life of the transmission.

Limitations
Despite its strengths, the Ford C4 has some limitations, particularly in high-performance applications. Its 3-speed configuration and moderate torque capacity may limit fuel efficiency and top-end speed in certain builds. Enthusiasts seeking more gears or greater efficiency may need to consider alternative transmissions or significant modifications to the C4.

Conclusion

Summary
The Ford C4 transmission is a lightweight, reliable, and straightforward automatic gearbox that has served countless drivers over the decades. Its simplicity, ease of maintenance, and compatibility with a variety of engines make it an enduring choice for classic Ford vehicles. While it may not offer the versatility or features of modern transmissions, its lightweight design and dependable performance keep it popular among enthusiasts and builders alike.

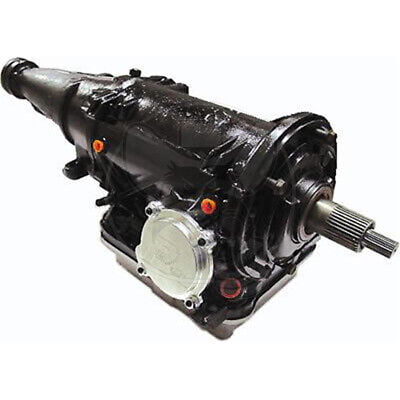

Ford C4 Transmission

Final Thoughts
Whether you’re maintaining a stock vehicle, building a high-performance car, or planning upgrades, the Ford C4 transmission offers a solid foundation. With extensive aftermarket support and the ability to handle a wide range of driving conditions, it remains a reliable choice. Proper maintenance and thoughtful modifications can keep the C4 running smoothly for years, ensuring your vehicle stays both functional and true to its original design.
