The Sterling 10.25-Inch Axle: Everything Bullnose Truck Owners Need to Know

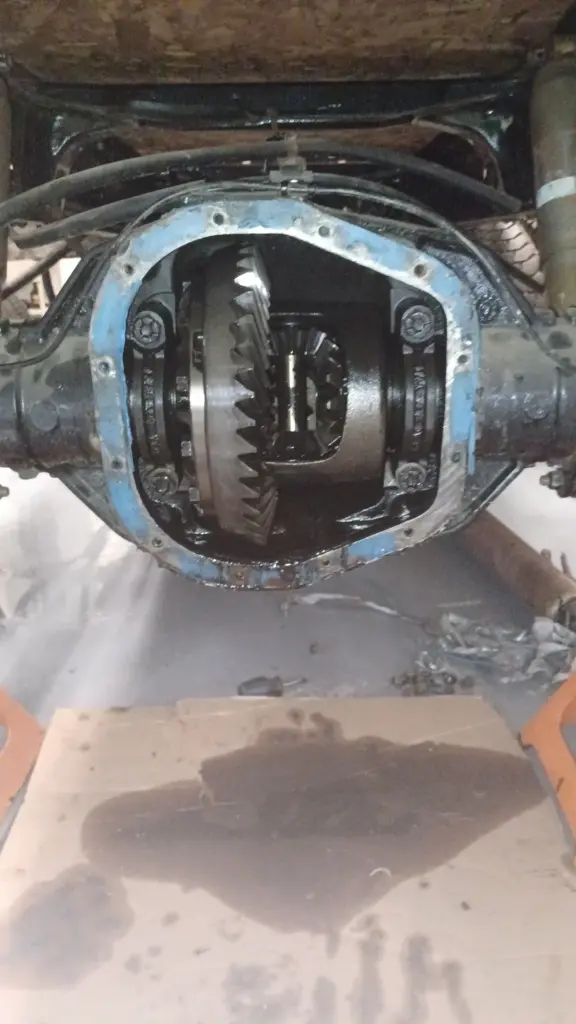

Sterling 10.25
Sterling 10.25

The Sterling 10.25-inch axle, often simply referred to as the Sterling 10.25, is a powerhouse in the world of heavy-duty truck axles. Known for its robust construction and reliability, this axle is a popular choice for Ford trucks, especially those built for towing and hauling. If you own a 1980-1986 Bullnose Ford truck or are considering an upgrade, this guide will provide all the details you need about the Sterling 10.25-inch axle, from its history and specifications to its strengths, maintenance tips, and comparisons with other axles.

Overview of the Axle

History

  • The Sterling 10.25-inch axle was introduced by Ford in 1983 as a heavy-duty rear axle option, primarily for use in F-250 and F-350 trucks. Designed to replace the older Dana 60 in certain applications, this axle quickly gained a reputation for strength and durability. It’s been a staple in Ford’s lineup for decades, particularly in trucks that are used for heavy towing and payloads.

Applications

  • This axle was commonly installed in Ford F-250 and F-350 trucks starting in the early 1980s. During the Bullnose era, it became the go-to rear axle for these models, especially in trucks intended for towing and heavy-duty use. Its strength and reliability make it a popular choice for those upgrading or restoring Bullnose trucks today.

Technical Specifications

Axle Type

  • The Sterling 10.25 is a solid rear axle with a full-floating design. This means the axle shafts do not bear the weight of the vehicle, allowing the axle to handle heavier loads without undue stress on the shafts themselves. The full-float design is ideal for heavy-duty applications, providing excellent durability and reliability.

Axle Shaft Splines

  • The Sterling 10.25 typically features 35-spline axle shafts, which contribute to its impressive strength. The higher spline count means more contact area, reducing the likelihood of twisting or breaking under heavy loads.

Ring Gear Size

  • As the name suggests, the ring gear in this axle measures 10.25 inches in diameter. This large ring gear allows the axle to handle significant torque loads, making it suitable for trucks that need to tow heavy trailers or carry large payloads.

Gear Ratios

  • The Sterling 10.25 axle is available with a range of gear ratios, typically from 3.31:1 to 4.56:1. These ratios allow for flexibility depending on the truck’s intended use. Lower ratios (numerically higher) like 4.10:1 or 4.56:1 provide better towing and off-road performance, while higher ratios (numerically lower) like 3.55:1 offer improved fuel economy for highway driving.

Weight Rating

  • The gross axle weight rating (GAWR) for the Sterling 10.25 can range from 6,000 to 7,000 pounds, depending on the specific configuration. This makes it one of the strongest axles available for heavy-duty trucks, well-suited for demanding tasks.

Dimensions

  • The Sterling 10.25 axle typically measures around 68 to 72 inches in width, flange to flange. The axle tubes are approximately 3.5 inches in diameter, providing the necessary strength to support heavy loads.

Axle Weight

  • The Sterling 10.25 is a heavy axle, with most configurations weighing between 300 and 350 pounds. This weight reflects its beefy construction, which is designed to withstand the rigors of heavy-duty use.

Fluid Capacity

  • This axle typically holds about 4 to 5 quarts of gear oil. Maintaining the proper fluid level is crucial for the longevity of the axle, particularly if it’s used in towing or off-road conditions.

Full-Floating Design

  • The full-floating design of the Sterling 10.25 is one of its key features. In this configuration, the axle shafts only transmit power to the wheels and do not support the vehicle’s weight, which allows the axle to handle heavier loads and reduces the risk of axle shaft failure under extreme conditions.

Pinion Support

  • The Sterling 10.25 features robust pinion support, with larger bearings compared to lighter-duty axles. This design helps reduce pinion deflection under load, which is essential for maintaining durability when the axle is subjected to high torque loads, such as during towing or off-road driving.

Strengths and Capabilities

Durability

  • The Sterling 10.25 is built to last, with durability being one of its standout features. Whether you’re towing a heavy trailer or carrying a full load, this axle can handle the stress without breaking a sweat. The combination of a large ring gear, thick axle tubes, and a full-floating design makes it incredibly robust and reliable.

Aftermarket Support

  • While the aftermarket support for the Sterling 10.25 isn’t as extensive as for some other axles like the Dana 60, there are still plenty of options available for those looking to upgrade. Whether you need stronger gears, a locking differential, or upgraded axle shafts, you’ll find a range of products to enhance the performance of this axle.

Versatility

  • The Sterling 10.25 is versatile enough to be used in a variety of applications, from heavy-duty towing to off-road adventures. Its strength and reliability make it a favorite among those who need their truck to perform under demanding conditions. Whether you’re driving on the highway with a trailer in tow or navigating rough terrain, this axle can handle it.

Common Upgrades

  • Popular upgrades for the Sterling 10.25 include installing a locking differential to improve traction, upgrading to stronger axle shafts, and selecting different gear ratios to better suit your driving needs. Reinforcing the axle tubes or adding trusses is also common in extreme off-road builds to enhance durability.

Compatibility

  • The Sterling 10.25 is compatible with a variety of brake setups, including both disc and drum brakes. It also pairs well with different suspension systems, making it a good choice for custom builds or retrofits. If you’re upgrading from a lighter axle, you may need to make adjustments to accommodate the size and weight of the Sterling 10.25.

Maintenance and Care

Fluid Recommendations

  • Ford recommends using 75W-90 or 80W-90 gear oil in the Sterling 10.25 axle, depending on the specific model and usage. If your axle is equipped with a limited-slip differential, be sure to add the appropriate friction modifier to prevent chatter and ensure smooth operation.

Regular Maintenance

  • Regular maintenance is crucial to keep the Sterling 10.25 in top condition. This includes changing the gear oil every 30,000 to 50,000 miles, depending on your usage. It’s also important to inspect the axle seals and bearings for any signs of wear or leaks. Given the heavy-duty nature of this axle, regular checks of the axle tubes and pinion support for stress or damage are advisable, particularly if the truck is used for towing or off-road driving.

Common Issues

  • While the Sterling 10.25 is known for its durability, it’s not without its potential issues. Common problems include pinion seal leaks, particularly under heavy use, and bearing wear in high-mileage axles. If you notice any unusual noises, like whining or grinding, it’s important to inspect the axle and address any issues before they lead to more significant problems.

Tips for Longevity

  • To maximize the lifespan of your Sterling 10.25 axle, follow the recommended maintenance schedule and avoid overloading your truck. Regular inspections of the seals, bearings, and gear oil level will help prevent major issues. If you frequently drive off-road, be cautious of the terrain and avoid situations that could stress the axle unnecessarily.

Comparison with Other Axles

Strength vs. Competitors

  • The Sterling 10.25 is often compared to other heavy-duty axles like the Dana 60 or GM 14-bolt. While the Dana 60 is popular for its balance of strength and weight, the Sterling 10.25 offers greater load capacity and durability, especially in heavy-duty towing and hauling applications. Compared to the GM 14-bolt, the Sterling 10.25 is similar in strength, but it has different aftermarket support and specifications that might make it a better fit for certain builds.

Ideal Applications

  • The Sterling 10.25 is ideal for trucks that need to handle heavy loads, tow large trailers, or take on tough off-road conditions. If you’re building a Bullnose truck for serious towing or off-road adventures, this axle is an excellent choice.

Installation Notes

Compatibility and Modifications

  • Installing a Sterling 10.25 in a Bullnose truck might require some modifications, particularly if you’re upgrading from a lighter axle. You’ll need to ensure that the driveshaft, suspension, and brake systems are compatible with the dimensions and weight of the new axle. It’s also important to consider how the added weight might affect your truck’s handling and fuel economy.

Brake and Suspension Considerations

  • Upgrading to a Sterling 10.25 often involves upgrading your brakes and suspension as well. The increased strength and weight can place additional strain on your truck’s braking system, so disc brakes are often recommended. Suspension upgrades, such as stronger leaf springs or reinforced control arms, can help manage the extra weight and ensure your truck handles well both on and off the road.

Frequently Asked Questions (FAQ)

Q: What makes the Sterling 10.25 axle so strong?

  • A: The Sterling 10.25 is built with a large ring gear, thick axle tubes, and a robust full-floating design, all of which contribute to its strength. The axle is designed to handle heavy loads without stressing the axle shafts, making it ideal for towing and heavy-duty applications.

Q: How does the Sterling 10.25 compare to the Dana 60?

  • A: The Sterling 10.25 is stronger than the Dana 60, particularly in terms of load capacity and durability. While the Dana 60 is lighter and has more extensive aftermarket support, the Sterling 10.25 is better suited for trucks that need to handle extreme towing or heavy-duty hauling.

Q: Can I swap a Sterling 10.25 into my Bullnose F-150?

  • A: Yes, swapping a Sterling 10.25 into a Bullnose F-150 is possible, though it may require significant modifications to the suspension, driveshaft, and brake systems. The swap is more common in F-250 and F-350 models, where the truck is built to handle the axle’s additional weight and strength.

Q: What gear ratio should I choose for my Sterling 10.25 axle?

  • A: The best gear ratio depends on how you plan to use your truck. Ratios like 4.10:1 or 4.56:1 are ideal for towing and off-roading, while higher ratios like 3.55:1 are better for highway driving and fuel efficiency.

Q: Is the Sterling 10.25 compatible with disc brakes?

  • A: Yes, the Sterling 10.25 is compatible with disc brakes, and many aftermarket kits are available for converting from drums to discs. Disc brakes offer better stopping power and are recommended for trucks that see heavy use or towing.

Q: How often should I change the gear oil in my Sterling 10.25 axle?

  • A: It’s recommended to change the gear oil every 30,000 to 50,000 miles, depending on usage. If you’re using the axle for heavy towing or off-roading, consider changing the oil more frequently.

Q: What’s the best way to increase the strength of my Sterling 10.25 axle?

  • A: To increase the strength of your Sterling 10.25, consider upgrading to stronger axle shafts, installing a locking differential, and reinforcing the axle tubes with trusses. These upgrades will help the axle withstand extreme conditions.

Q: Are there any common issues with the Sterling 10.25 axle I should watch out for?

  • A: Common issues with this axle include pinion seal leaks and bearing wear, particularly in high-mileage or heavily-used axles. Regular maintenance and inspections can help catch these problems early.

Conclusion

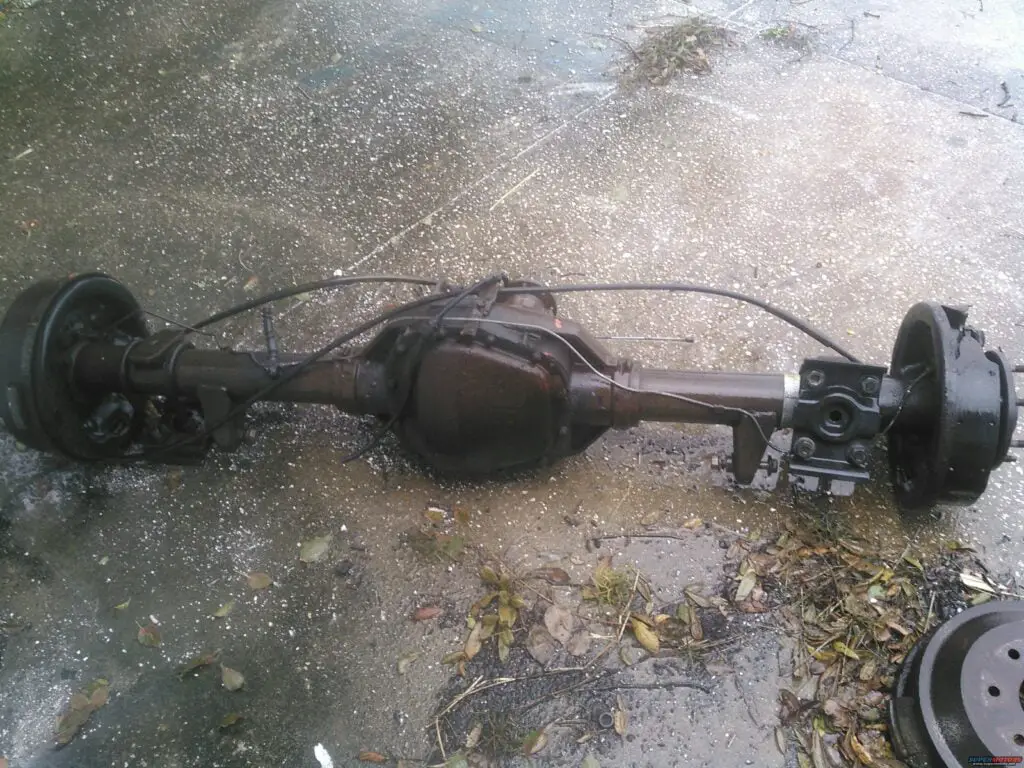

Ford Sterling 10.25

The Sterling 10.25 axle is a powerhouse, designed for trucks that need to handle the toughest conditions. Whether you’re building a Bullnose truck for extreme towing, heavy hauling, or serious off-roading, this axle offers the strength and durability you need. With proper maintenance and a few strategic upgrades, it will keep your truck performing at its best for years to come.
